EMS

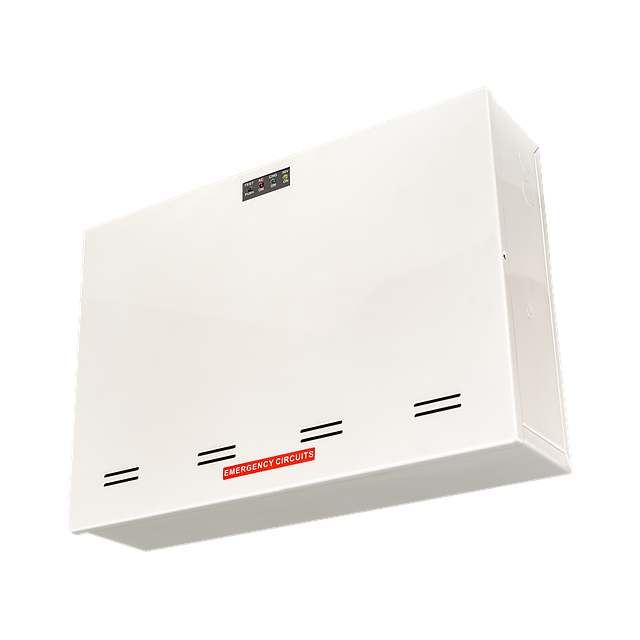

20VA – 55VA Micro Inverter

The EMS Series is designed to provide 20- to 55- Watts of emergency power to incandescent, fluorescent, and/or LED fixtures. The EMS unit provides clean, sinusoidal AC output power allowing it to be remotely mounted up to 1,000 feet away from the controlled fixture(s). Unlike a ballast fluorescent emergency pack, the EMS provides power to the input side of the fixture (including the ballast), eliminating any chance of incompatibility.
Specification Sheet

Resources

Color / Finish

  • White

Dimming Protocol

  • PWM

Inverter Options

  • Single Phase System

Listings

  • UL

Materials

  • Steel

Mounting

  • Ceiling
  • Grid
  • Plenum
  • Recessed
  • Surface
  • Wall

Ratings & Compliance

  • NFPA 101
  • Title 20

Voltage

  • 120 V
  • 277 V

Warranty

  • 3 yr

Watts

  • 9 w

Battery Type

  • Lead Calcium
  • Nickel Cadmium

Input Voltage

  • 120/277 VAC

Output Breaker Configuration

  • Normally Off
  • Normally On
  • Switched

Output Voltage

  • 120/277 VAC

VA Rating

  • 20 Watts/VA
  • 32 Watts/VA
  • 35 Watts/VA
  • 55 Watts/VA
